约单 app 导游模块分析
# 抓包
这里使用 postern + charles 抓包

# 静态分析

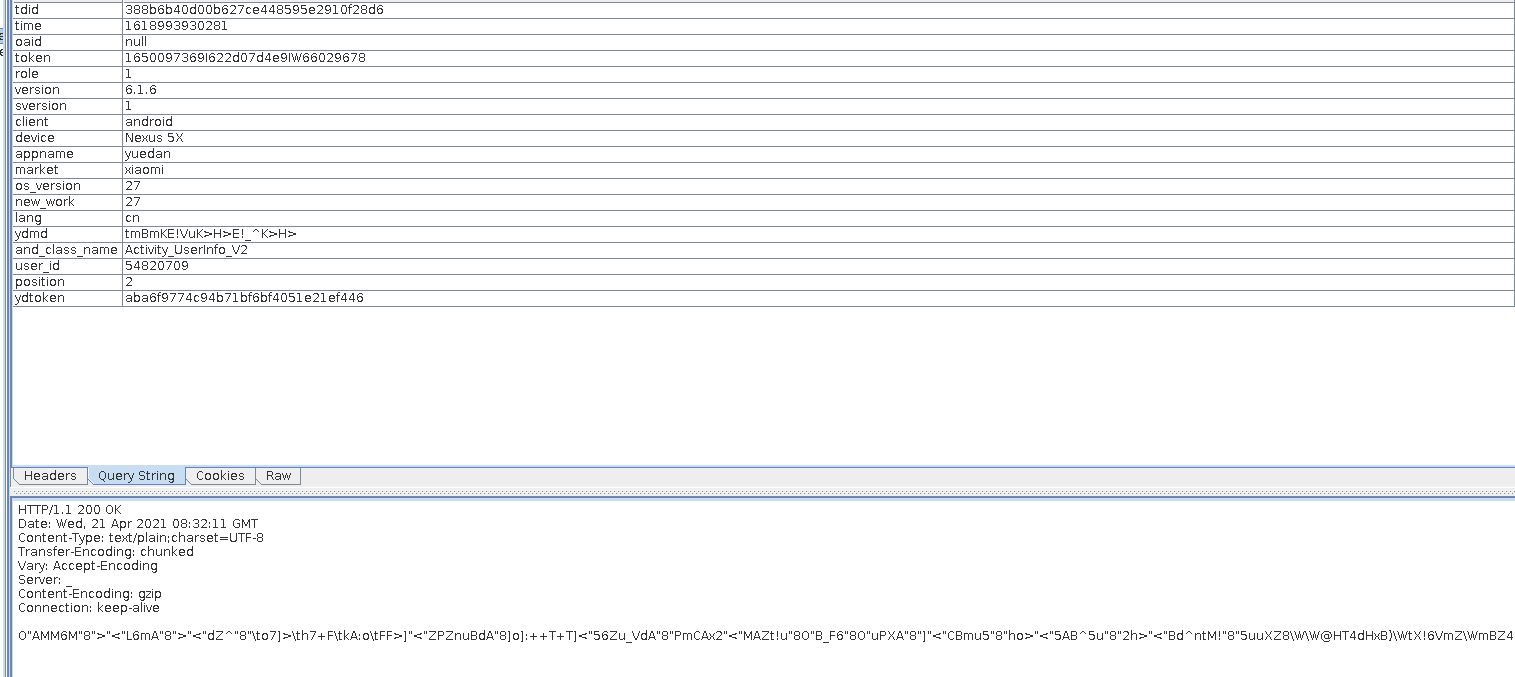

通过抓包结果可知响应是加密的,请求参数也需要看一下。经过 jadx 静态反编译可以得知:
| 参数 | 分析结果 |
|---|---|
| GET | 请求方式 |
/api3.0/user/box | api{https://and.iyuedan.com/api3.0/user/box} |
?tdid=388b6b40d00b627ce448595e2910f28d6 | |
&time=1618816116054 | 时间戳 |
&oaid=null | 写死 |
&token=1650097369I622d07d4e9IW66029678 | deviceId 写死 |
&role=1 | 写死 |
&version=6.1.6 | 写死 |
&sversion=1 | 写死 |
&client=android | 写死 |
&device=Nexus 5X | 写死 |
&appname=yuedan | 写死 |
&market=xiaomi | 写死 |
&os_version=27 | 写死 |
&new_work=27 | 写死 |
&lang=cn | 写死 |
&ydmd=tmBmKE!VuK>H>E!_^K>H> | 母鸡,写死 |
&and_class_name=Activity_UserInfo_V2 | 写死 |
&user_id=53745578 | 用户 id 写死 |
&position=2 | 写死 |
&ydtoken=6f9e3deb3afa8e2ccd4f015ca06fcef9 | |
HTTP/1.1 | http 协议 |
经过分析,tdid 是不变化的,也有可能是登陆时候生成的 (没有分析), 接下来搜索 ydtoken

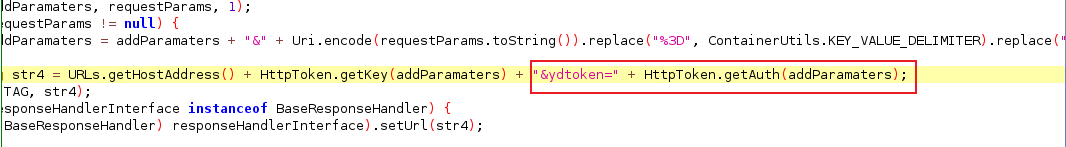

进过分析这里最为可疑,然后点进去看一下

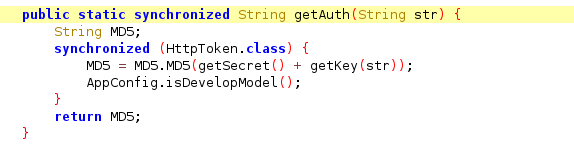

可以看到这里是 MD5 加密,但是还是需要开启 objection 看一下.

但是在网页端使用 MD5 加密将原本的字符串加密之后结果并不一样,怀疑加盐了或者是自写的 MD5 加密,(但是一般不会是自写算法). 我第一次在找盐的时候想错了。简单方法可以直接 hook 这个 md5 算法这样就会知道了
接着分析响应加密

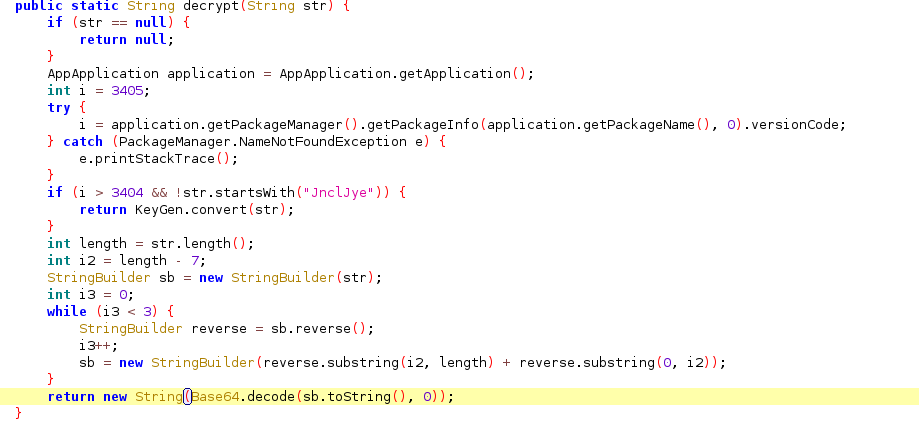

具体怎么找到的我也忘记了,只记得先找到了这个 decrypt 函数

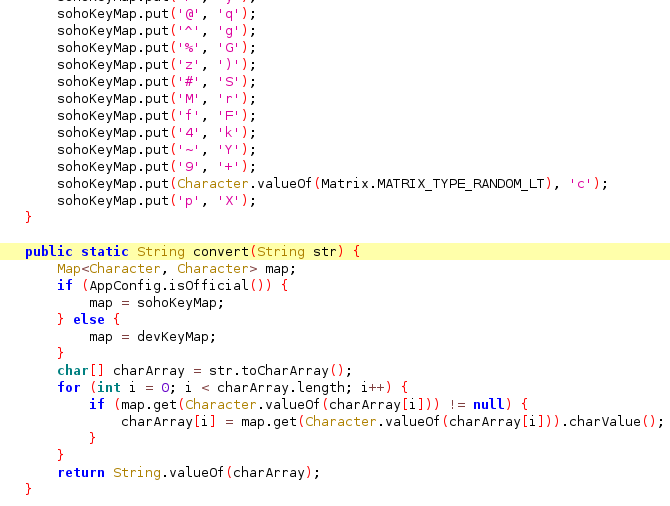

然后写 frida 脚本测试一下是可以调用成功的,但是在把算法抠出来写入却始终报错,然后再试了试 hook convert .

将这里的 sohoKeyMap 和 devKeyMap 重写,这样解密算法就完成了
至于如何做成接口调用这不是有手就行?
使用 springboot (不得不说 java 的代码是真的繁琐)
# tips
脱壳
我使用的是 yang 神的脱壳工具 https://github.com/lasting-yang/frida_dump
合并 dex
合并 dex 的方法有多种方法,我使用的是
https://github.com/Simp1er/AndroidSec/blob/master/dex2apk.py
import os | |
import zipfile | |
import argparse | |
def rename_class(path): | |
files = os.listdir(path) | |
dex_index = 0 | |
if path.endswith('/'): | |
path = path[:-1] | |
print(path) | |
for i in range(len(files)): | |
if files[i].endswith('.dex'): | |
old_name = path + '/' + files[i] | |
if dex_index == 0: | |
new_name = path + '/' + 'classes.dex' | |
else: | |
new_name = path + '/' + 'classes%d.dex' % dex_index | |
dex_index += 1 | |
if os.path.exists(new_name): | |
continue | |
os.rename(old_name, new_name) | |
print('[*] 重命名完毕') | |
def extract_META_INF_from_apk(apk_path, target_path): | |
r = zipfile.is_zipfile(apk_path) | |
if r: | |
fz = zipfile.ZipFile(apk_path, 'r') | |
for file in fz.namelist(): | |
if file.startswith('META-INF'): | |
fz.extract(file, target_path) | |
else: | |
print('[-] %s 不是一个APK文件' % apk_path) | |
def zip_dir(dirname, zipfilename): | |
filelist = [] | |
if os.path.isfile(dirname): | |
if dirname.endswith('.dex'): | |
filelist.append(dirname) | |
else: | |
for root, dirs, files in os.walk(dirname): | |
for dir in dirs: | |
# if dir == 'META-INF': | |
# print('dir:', os.path.join(root, dir)) | |
filelist.append(os.path.join(root, dir)) | |
for name in files: | |
# print('file:', os.path.join(root, name)) | |
filelist.append(os.path.join(root, name)) | |
z = zipfile.ZipFile(zipfilename, 'w', zipfile.ZIP_DEFLATED) | |
for tar in filelist: | |
arcname = tar[len(dirname):] | |
if ('META-INF' in arcname or arcname.endswith('.dex')) and '.DS_Store' not in arcname: | |
# print(tar + " -->rar: " + arcname) | |
z.write(tar, arcname) | |
print('[*] APK打包成功,你可以拖入APK进行分析啦!' ) | |
z.close() | |
def parse_args(): | |
parser = argparse.ArgumentParser(description='repackage dumped dex to apk for jeb/jadx analysis.') | |
parser.add_argument('-a', '--apk_path', required=True, type=str, | |
help='apk for extracting META-INF') | |
parser.add_argument('-i', '--dex_path', required=True, type=str, | |
help='path of dumped dex') | |
parser.add_argument('-o', '--output', type=str, default="repacked.apk", | |
help='apk path after zip') | |
args = parser.parse_args() | |
#print(args.apk_path) | |
return args | |
if __name__ == '__main__': | |
args = parse_args() | |
rename_class(args.dex_path) | |
extract_META_INF_from_apk(args.apk_path, args.dex_path) | |
# zip_file(args.dex_path) | |
zip_dir(args.dex_path, args.output) |
但是有时候我们也许不要合并,使用 ls -Sr 将 dex 按照大小排列,1.2.0 版本的 jadx 可以使用 add files 将 dex 添加到项目中但是我添加了 6 个之后就崩了,但是不影响分析.
